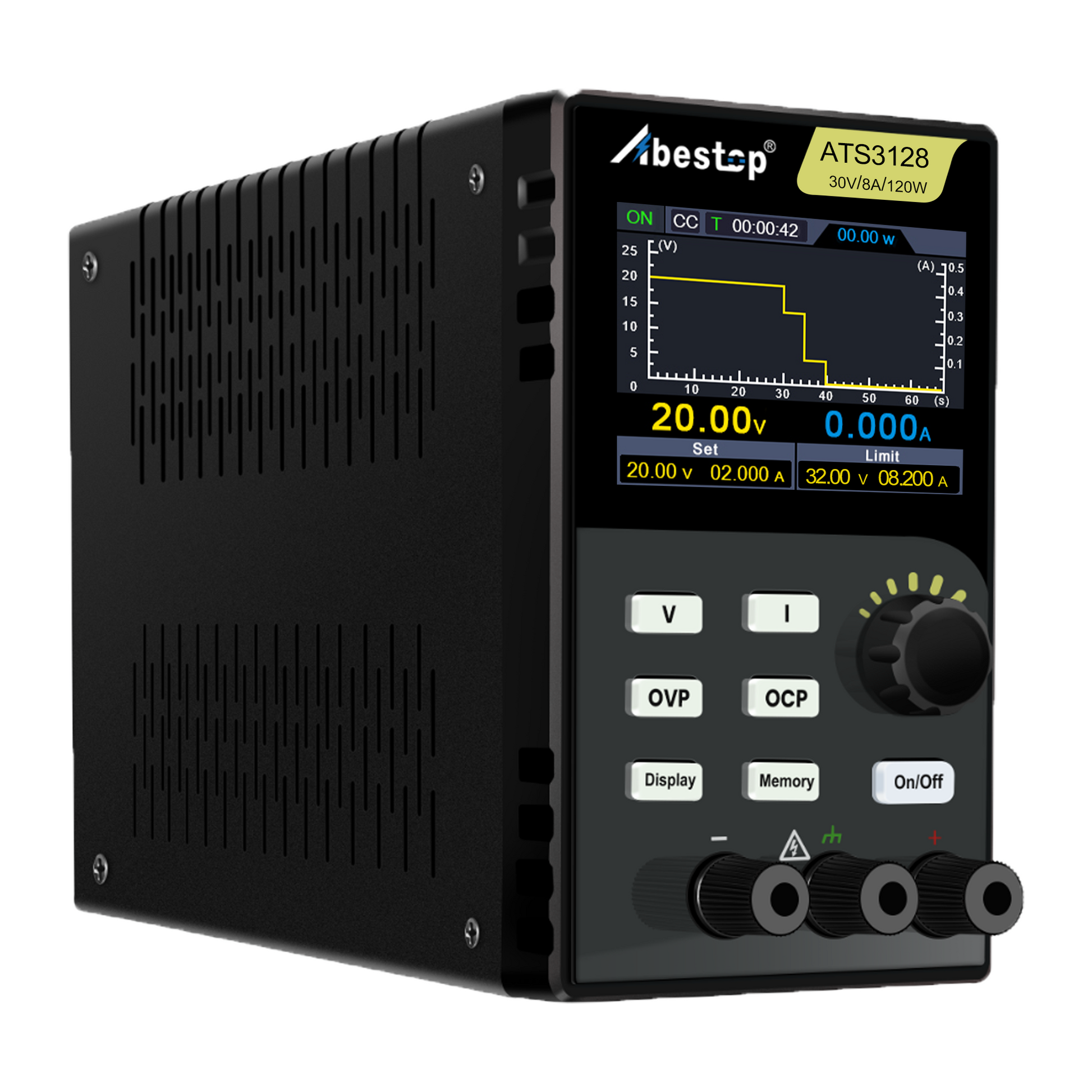

Abestop DC Power Supply 30V/8A Programmable Fanless Ultra-Quiet Bench Power Supply Editing List Waveform and Output with Multiple Protections (30V/8A/120W/ATS3128)

Abestop DC Power Supply 30V/8A Programmable Fanless Ultra-Quiet Bench Power Supply Editing List Waveform and Output with Multiple Protections (30V/8A/120W/ATS3128)

$185.00 USD
$185.00 USD
セール 売り切れ
  • 3010D/AT3155/AT3201/AT3301/AT6305/AT6201/AT6301/ and ATM6301, as well as the ATS6155 and ATS3128, are part of the same series's power supplies, same brand.
  • Parameter: AT3128 lab power supply, 30V/8A output range, 120W output power, 10mV/1mA output solutions, 85V-265V AC(45-65HZ) INPUT VOLTAGE, Fuse 250V/5A; Support list waveform editing and output, 4 groups of memory shortcut parameters for quick output

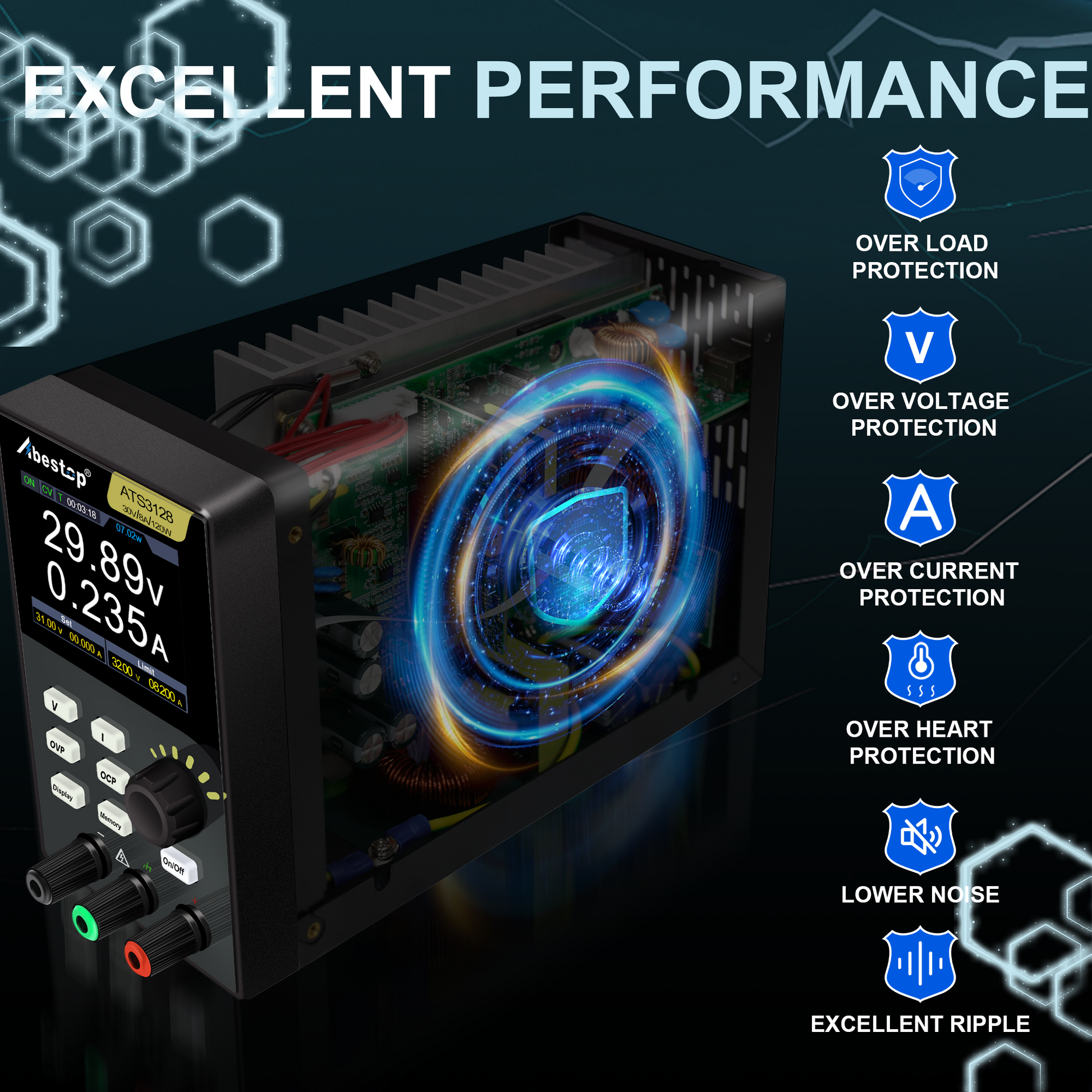

  • Excellent Design: Fanless Design, upgrade version; Super quiet, reduce the vibration noise and failure risk of the traditional cooling fan, create you a quiet environment; Glorious heat dissipation, long-term operation under full load conditions ensures controlled temperature rise for internal component longevity

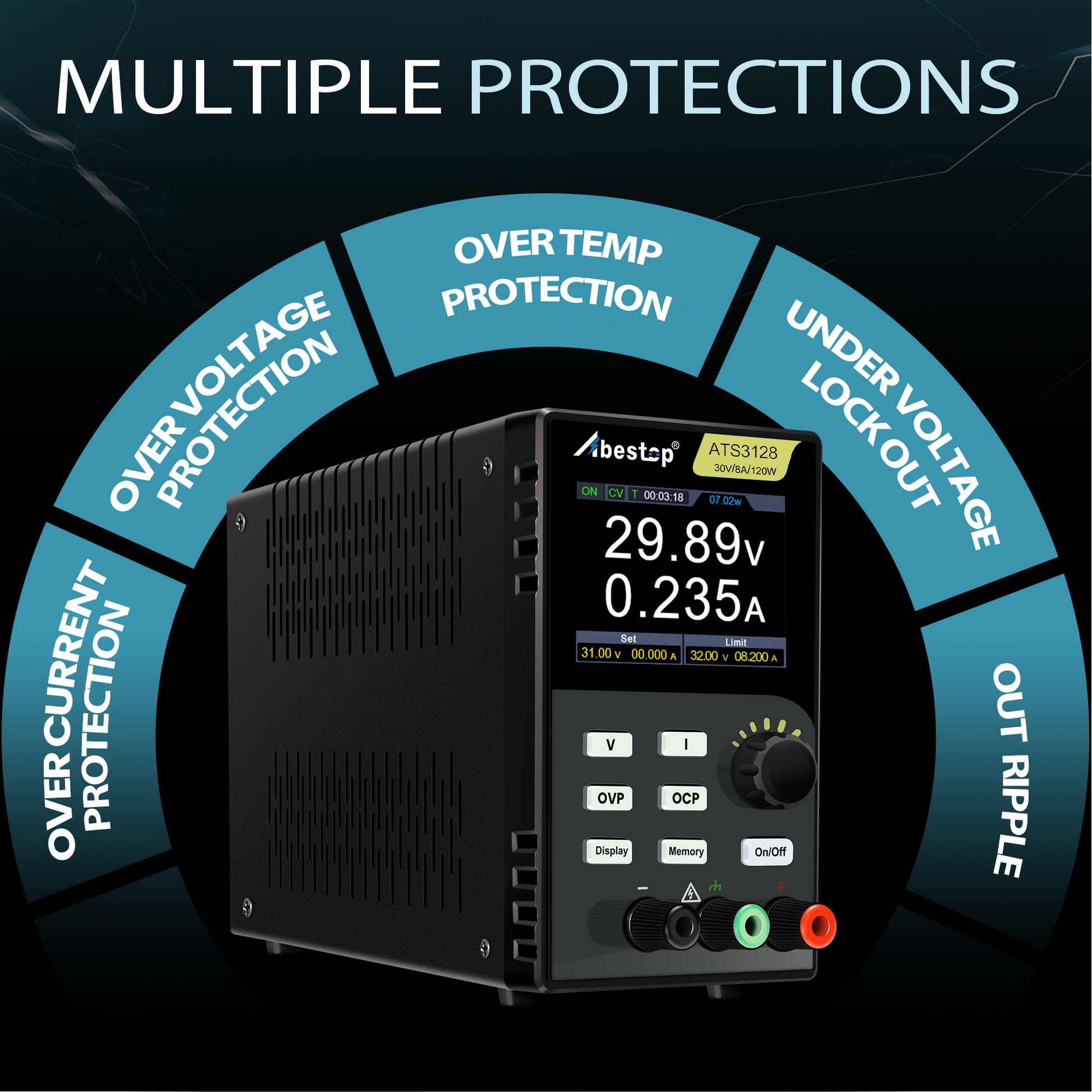

  • Multiple Protection: Built-in multiple protections, over-current, over-voltage, over-temp and under voltage lock out protections, low ripple; Built-in discharge design, protecting your equipment for safety and greater stability

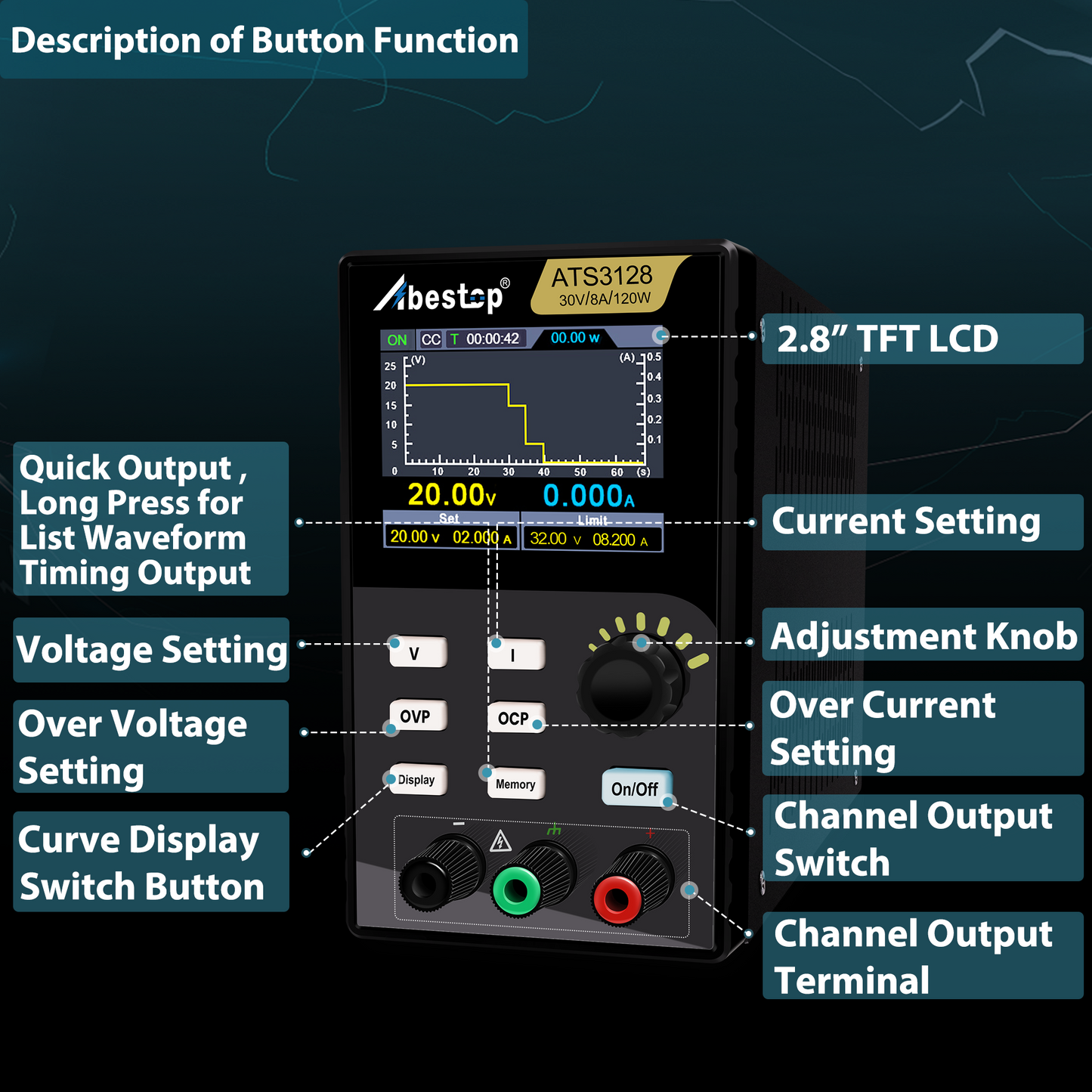

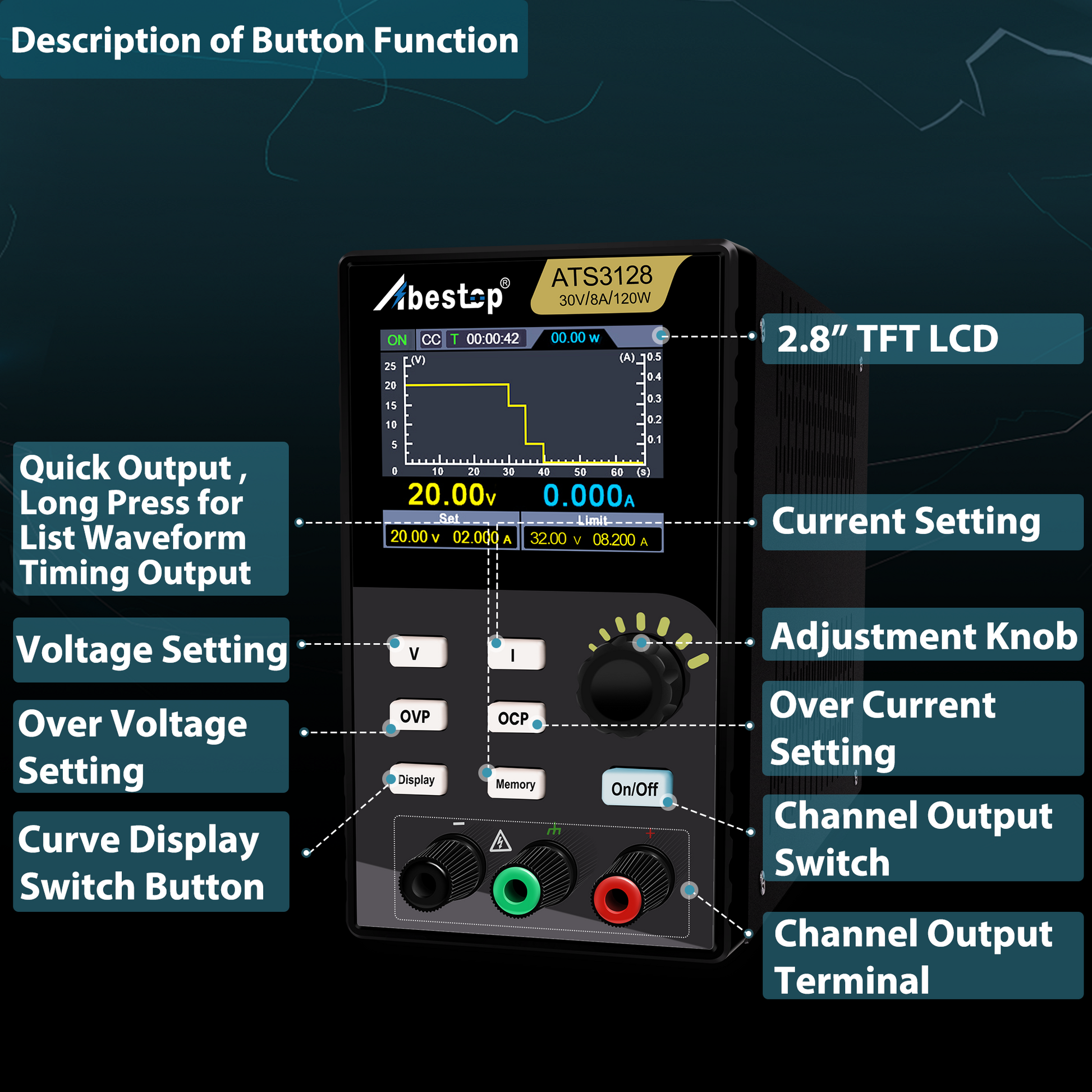

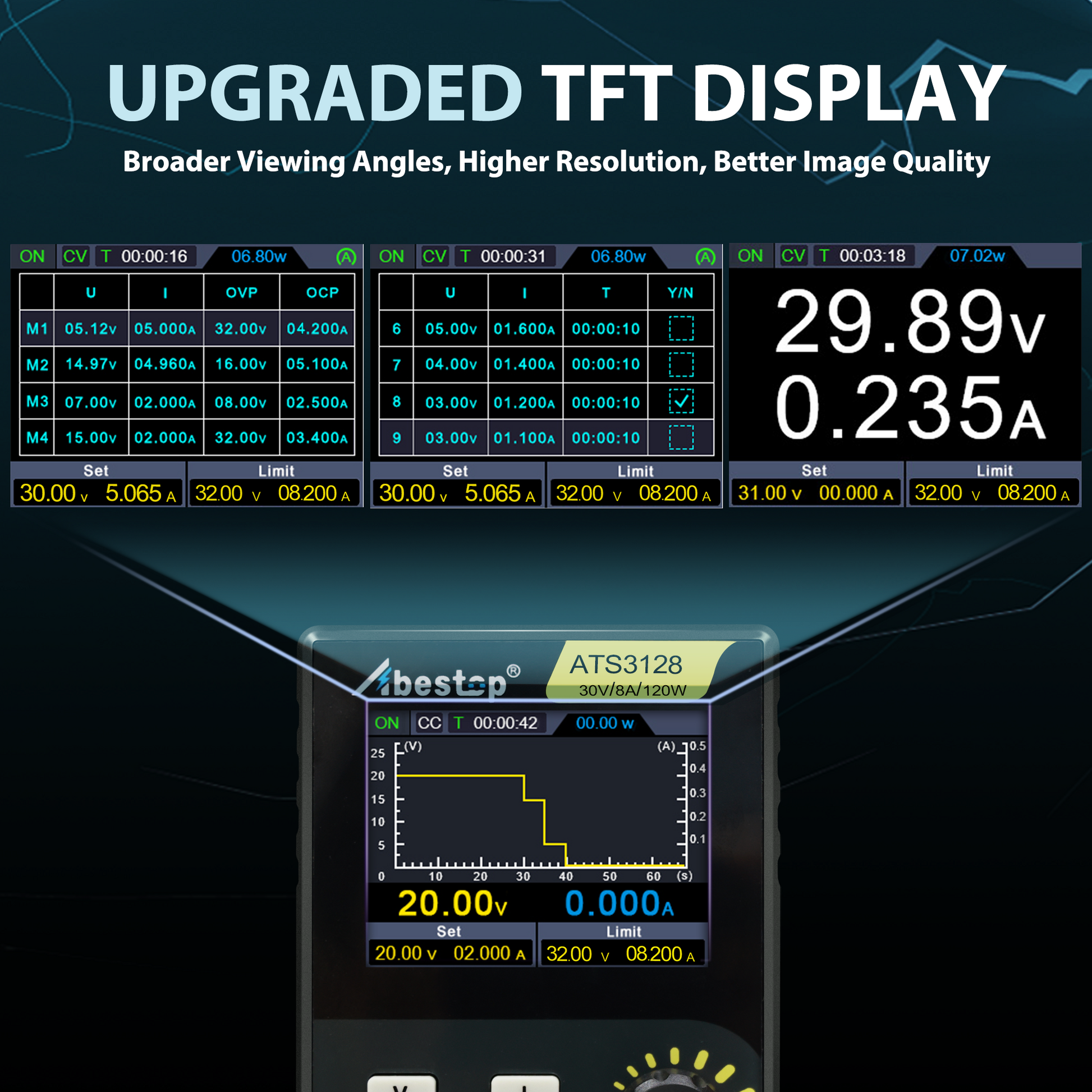

  • Display: 2.8” TFT display, UPGRADE SCREEN VERSION ; Multiple angles for a clearer view of the data; Supports monitoring curve waveforms and recording data, can monitor voltage, current, curve waveforms, easy to locate and capture anomalies
  • Application: Ultra-thin, ultra-quite, ATS3128 fanless power supply is typically used for testing electrical components, device and electronics in applications such as laboratory experiments, industrial testing, appliances, amateur and DIY projects, meet your demand
Download Operating Manual 詳細を表示する

  • オシロスコープ

    自動測定機能
    調整可能なキートーン
    バックライトの明るさと持続時間を調整可能
    調整可能なオートパワーオフ時間
    デジタル電圧計機能
    2 つの基準波形と 4 つのその他の波形の波形記録

  • マルチメーター

    DC/ACで利用可能
    電圧、電流、抵抗、ダイオード、静電容量、導通テストに利用できます。

    注意: 画面にはフィルムがあり、傷がある場合があります。剥がしてご使用ください。

  • 波形発生器

    4種類の波を発生させます。
    正弦波: 1Hz~25MHz
    方形波：1Hz～10MHz
    三角波：1Hz～1MHz
    台形：1Hz～5MHz
    周波数回転数: 1Hz
