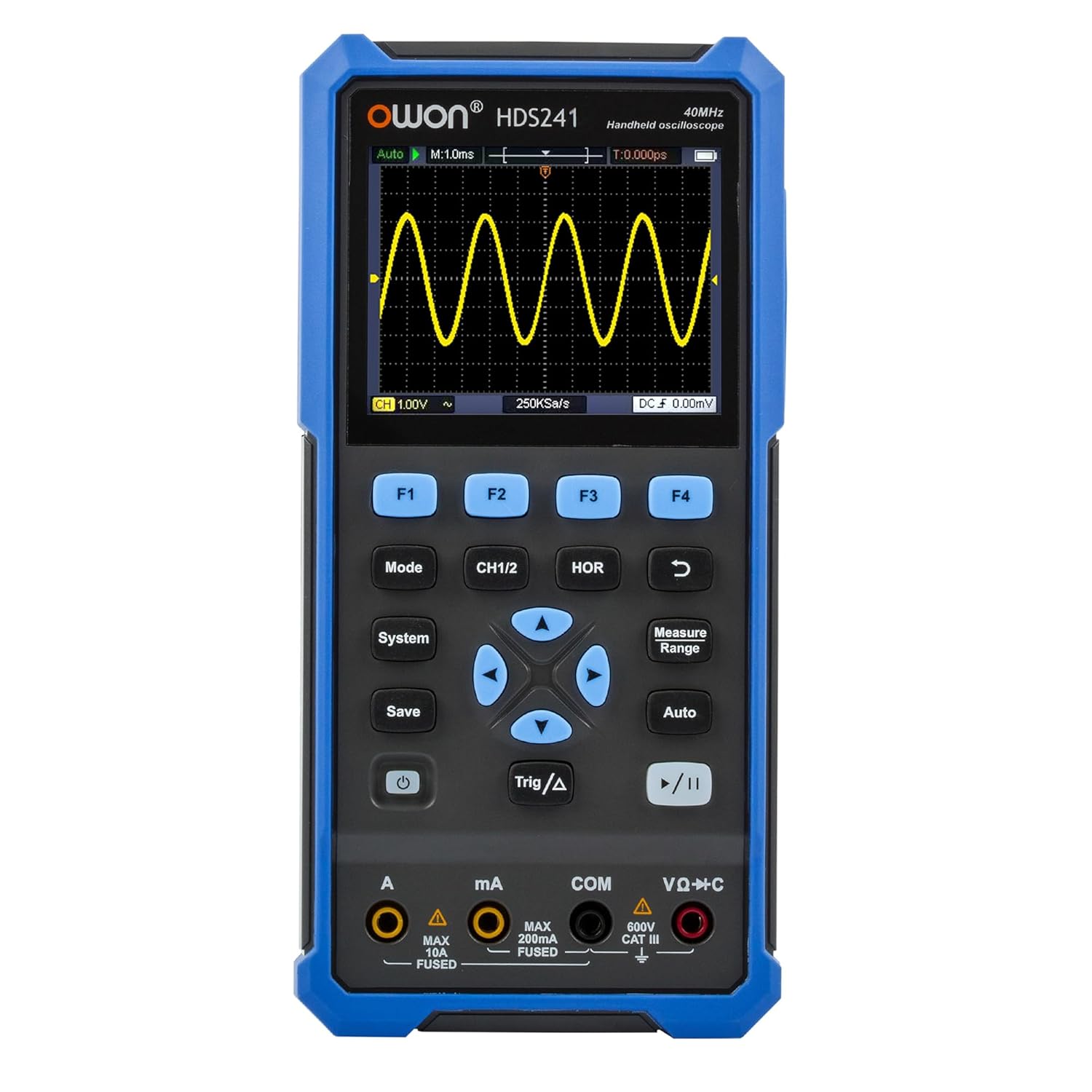

HDS241 OWON Oscilloscope Multimeter 40MHz Bandwidth Digital Oscilloscope 3 in 1 Functions Digital Multimeter 100KHz Signal Sources

HDS241 OWON Oscilloscope Multimeter 40MHz Bandwidth Digital Oscilloscope 3 in 1 Functions Digital Multimeter 100KHz Signal Sources

$92.99 USD
$122.99 USD $92.99 USD
セール 売り切れ

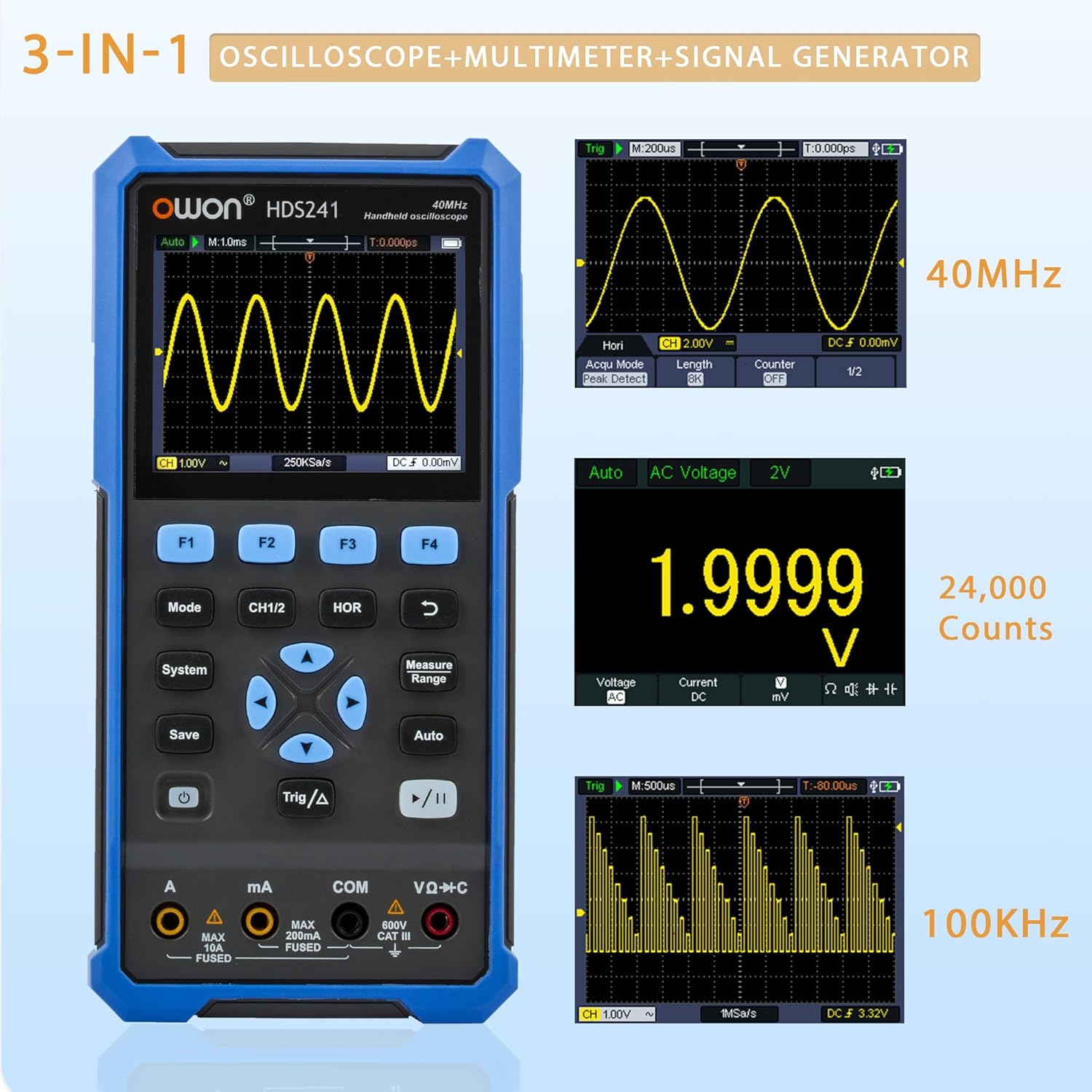

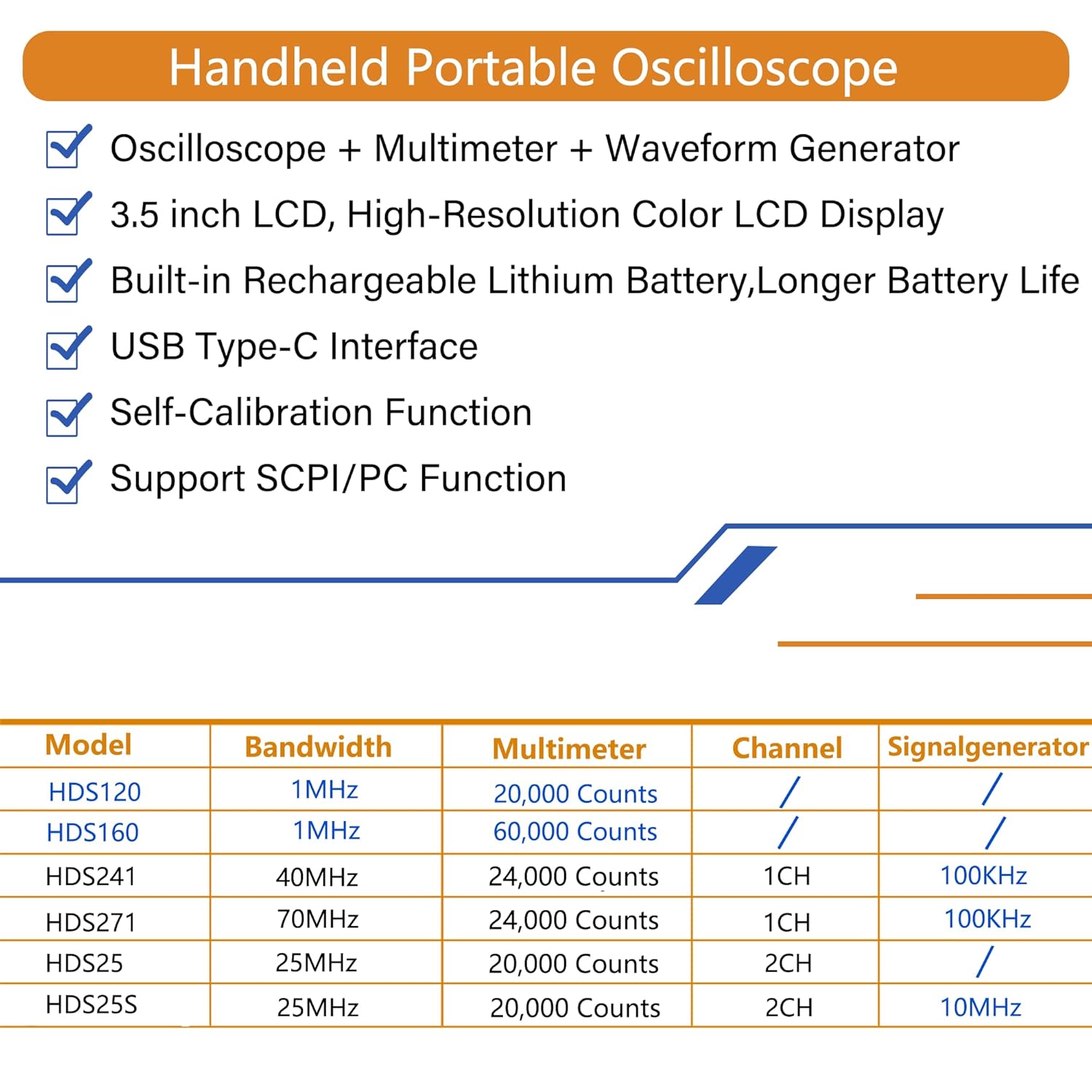

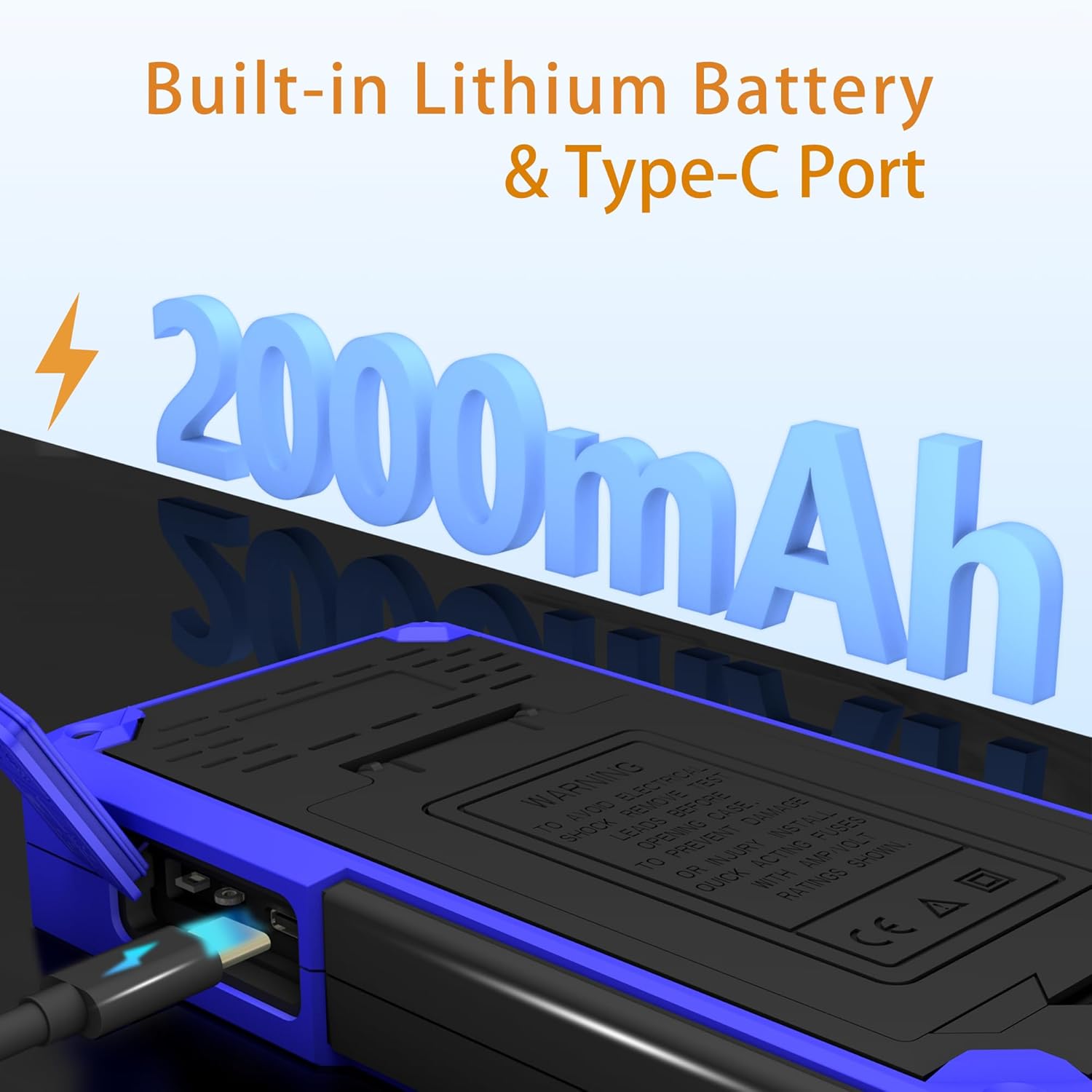

  • 3 in 1 Functions, oscilloscope + multimeter+ waveform generator; 40MHz bandwidth OSC, 24000 readings digital display, 100KHz WG; Lightweight and compact size, built in rechargeable battery, easy to carry and use anytime and anywhere

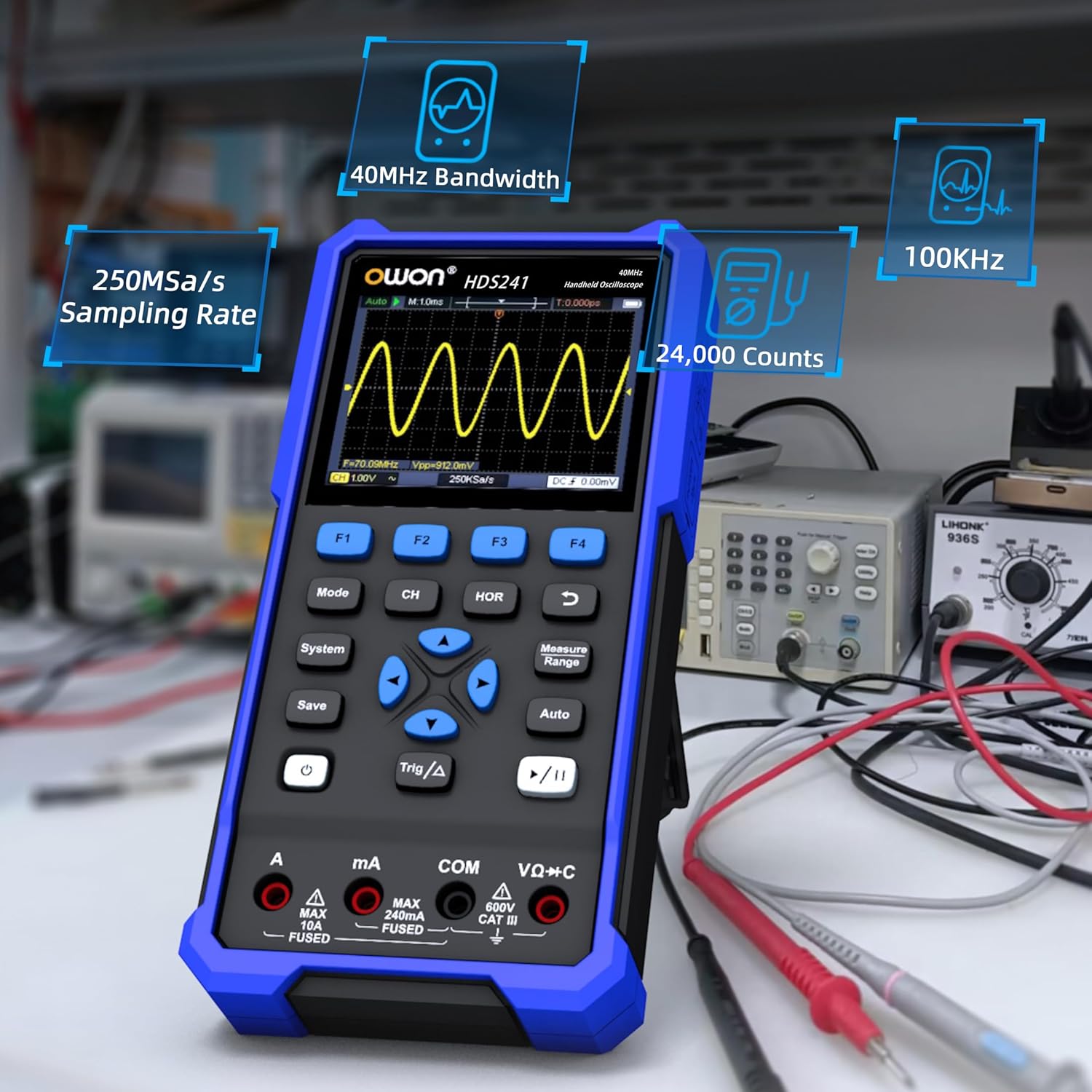

  • Oscilloscope: 1CH, 40MHz bandwidth, 250MSa/s real-time sampling rate; 8K record length, waveform refresh rate up to 10,000wfms/s; Auto setup and multiple measurement functions; Cursor measurement functionality & Slow sweep mode for long-term signal monitoring and capturing slow or periodic waveform trends
  • Oscilloscopes and multimeter are independent and isolation, CAN be measured at the same time the value of electrical signals, waveforms, more convenient for your work, BUT CANNOT be displayed on a screen at the same time in the device, need to switch

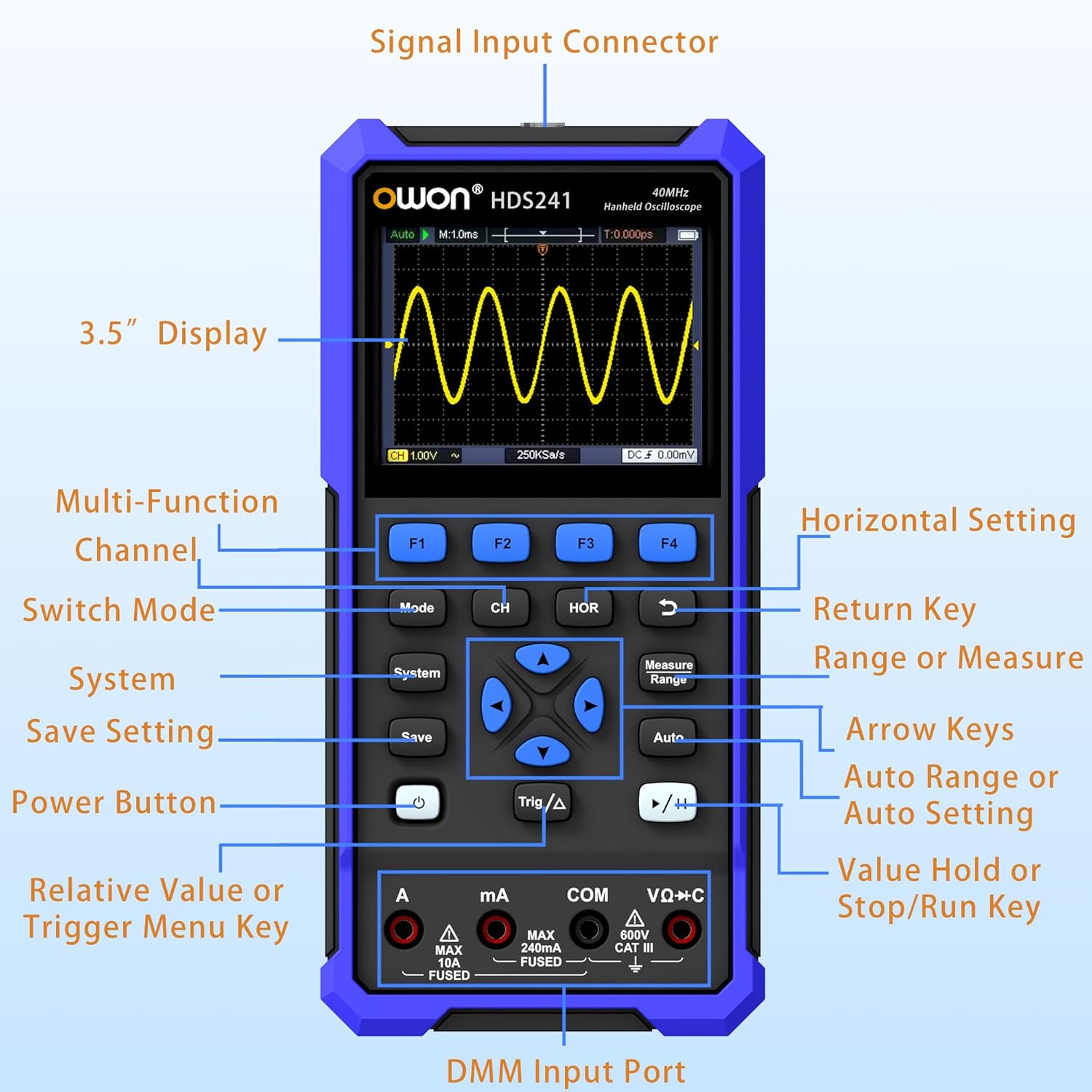

  • Built-in 3.5 inch high resolution color LCD, more convenient and clearer to view the date; Support PC software via USB to save waveform images and data for easy further analysis, more efficient and professional for your job

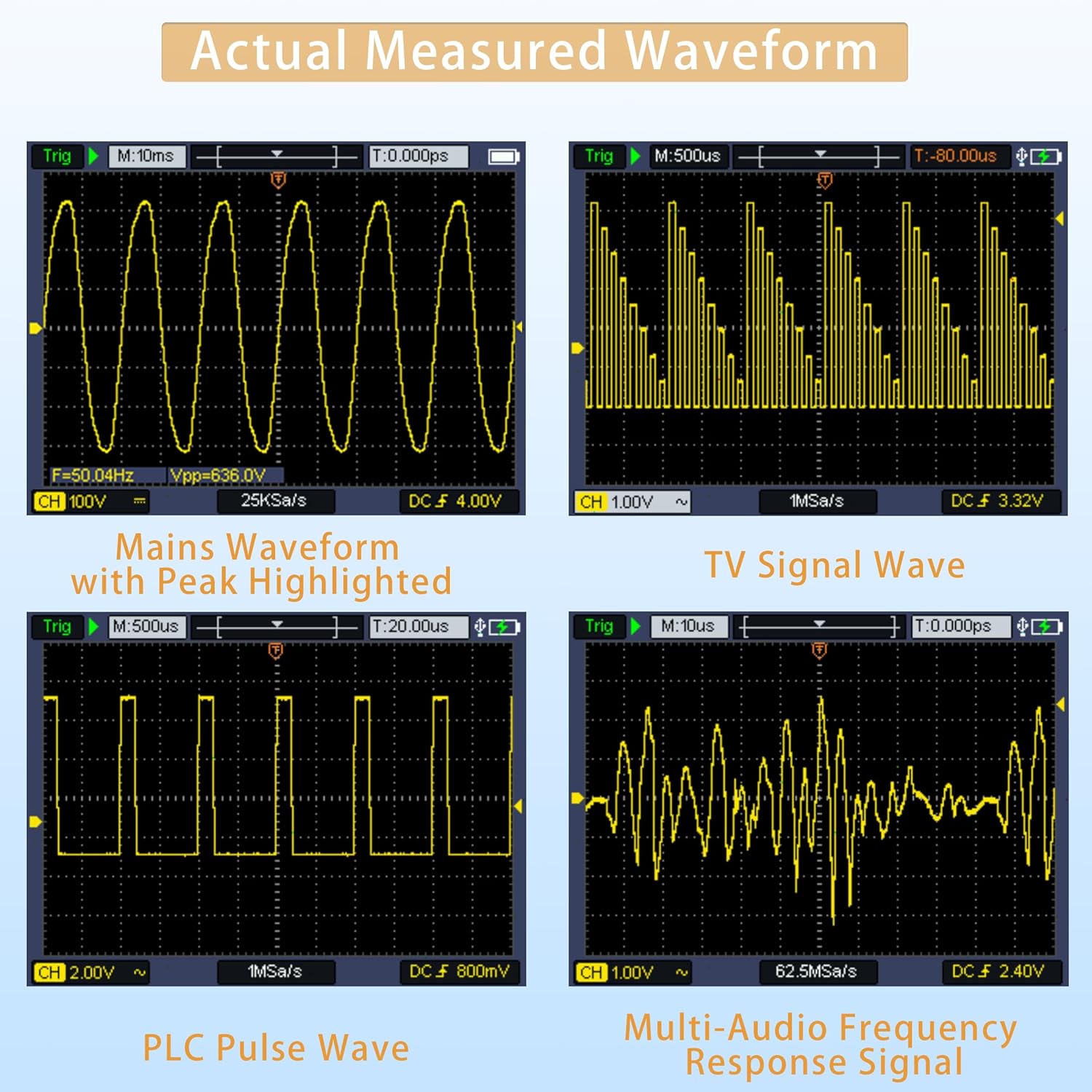

  • Application: Oscilloscopes are used to test and troubleshoot electronic circuits, Field Service And Repair, it can visualize the waveforms of signals passing through the circuit, which can help identify issues such as voltage spikes, or noise; Apply in Automotive Diagnostics, Signal Analysis, connected to sensors and components in a vehicle to identify potential issues
Download Operating Manual 詳細を表示する

  • オシロスコープ

    自動測定機能
    調整可能なキートーン
    バックライトの明るさと持続時間を調整可能
    調整可能なオートパワーオフ時間
    デジタル電圧計機能
    2 つの基準波形と 4 つのその他の波形の波形記録

  • マルチメーター

    DC/ACで利用可能
    電圧、電流、抵抗、ダイオード、静電容量、導通テストに利用できます。

    注意: 画面にはフィルムがあり、傷がある場合があります。剥がしてご使用ください。

  • 波形発生器

    4種類の波を発生させます。
    正弦波: 1Hz~25MHz
    方形波：1Hz～10MHz
    三角波：1Hz～1MHz
    台形：1Hz～5MHz
    周波数回転数: 1Hz
