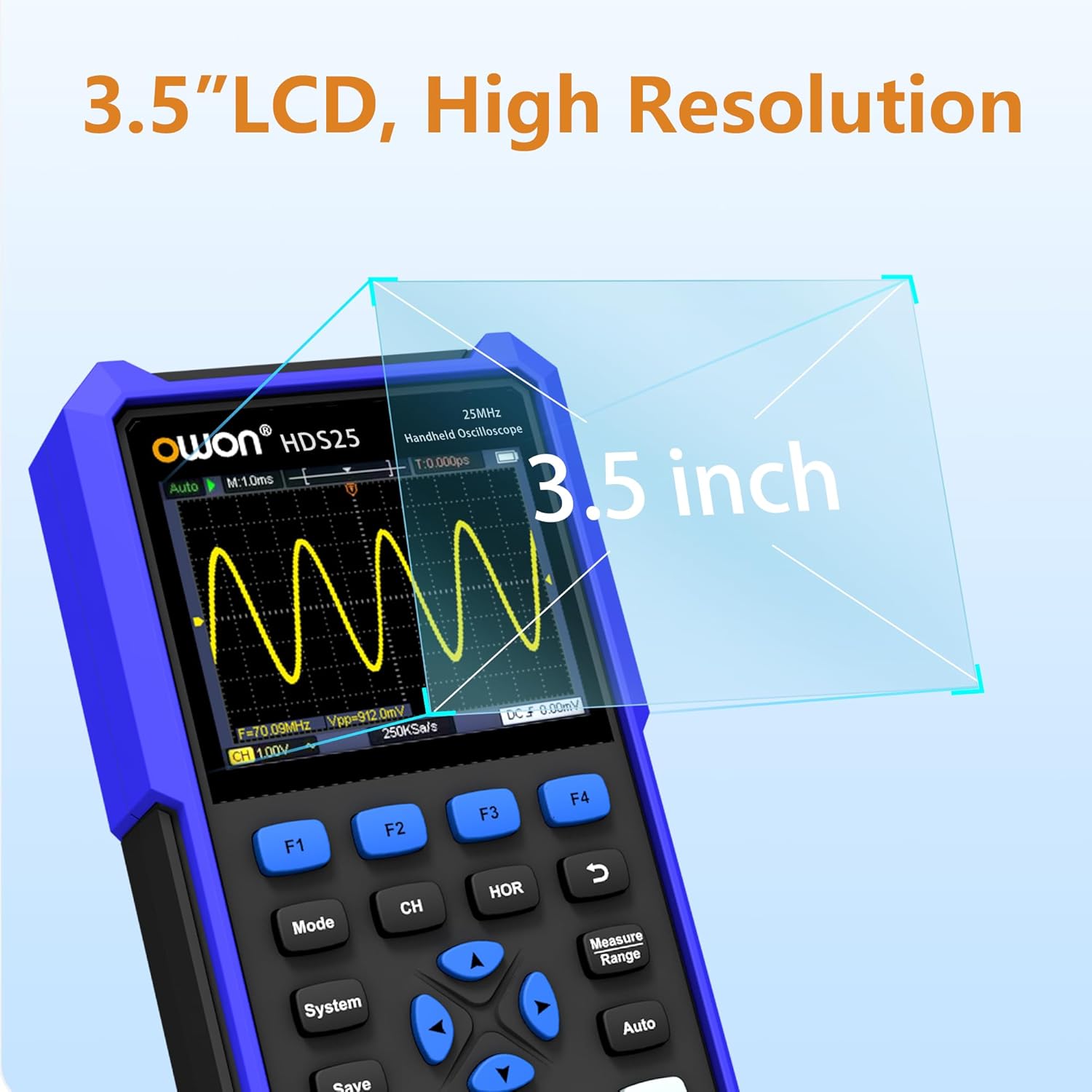

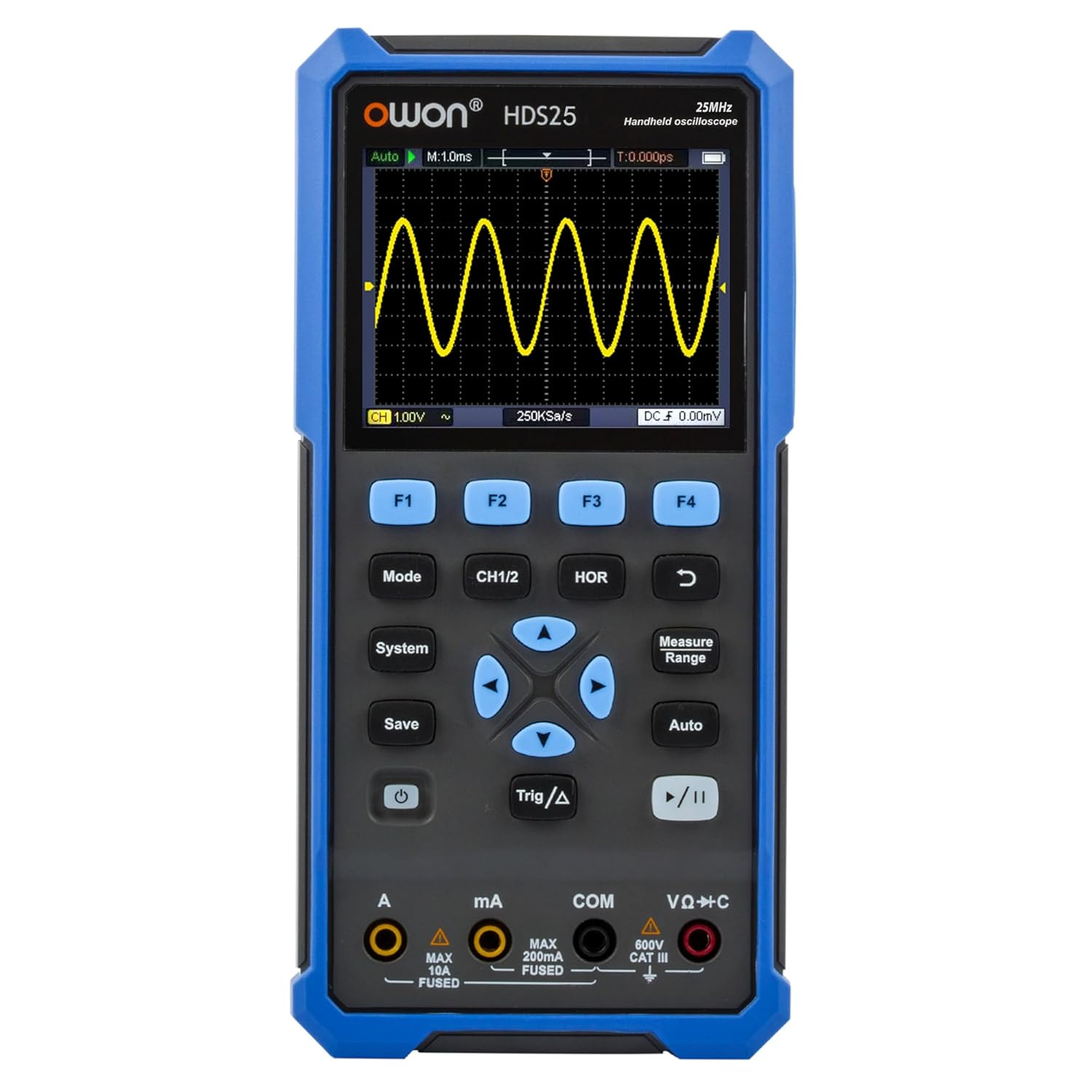

HDS25 OWON Oscilloscope Dual Channel Handheld 25MHz Bandwidth Digital Oscilloscope 250 MSa/s Sample Rate Digital Multimeter 3.5” LCD

HDS25 OWON Oscilloscope Dual Channel Handheld 25MHz Bandwidth Digital Oscilloscope 250 MSa/s Sample Rate Digital Multimeter 3.5” LCD

$94.99 USD
$129.99 USD $94.99 USD
セール 売り切れ

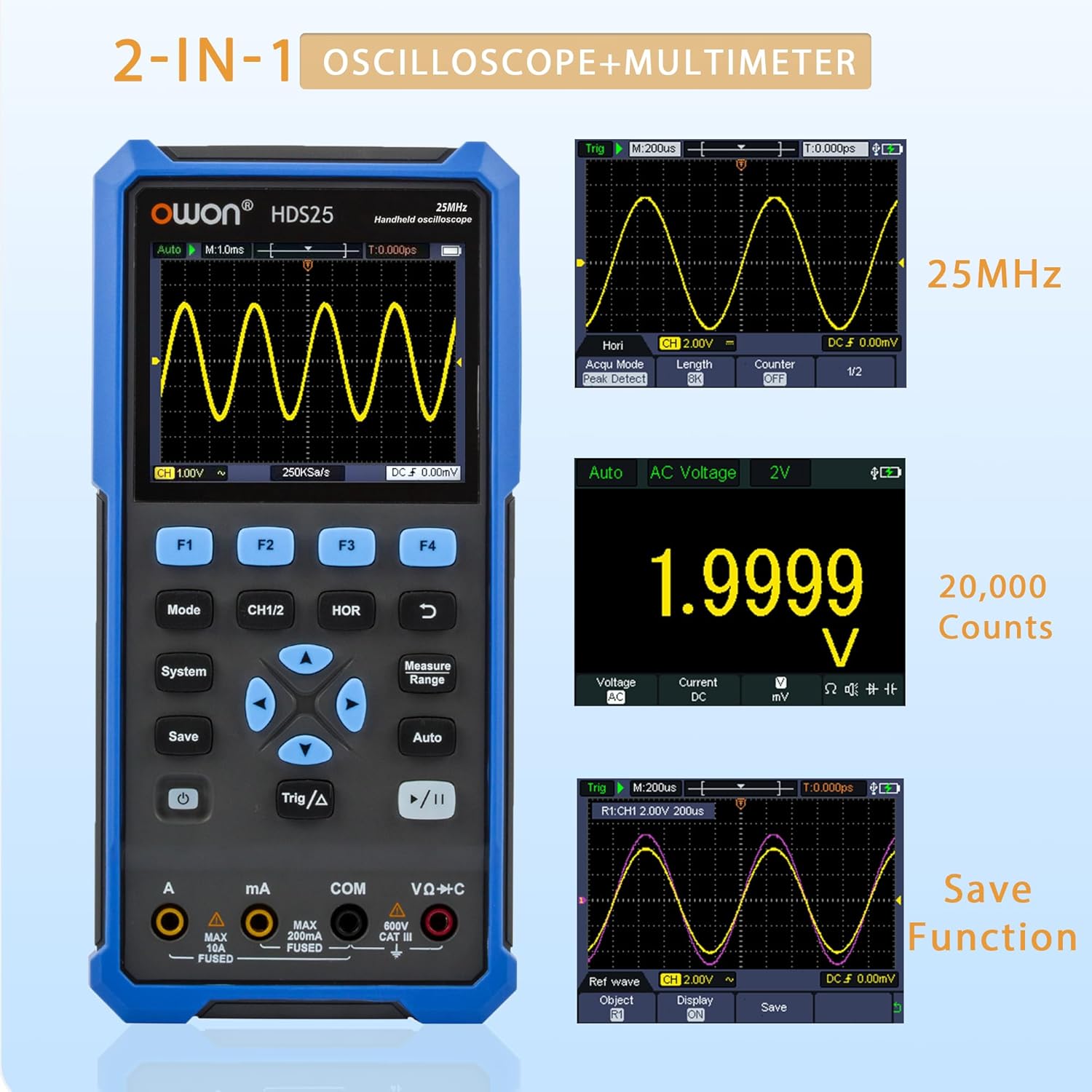

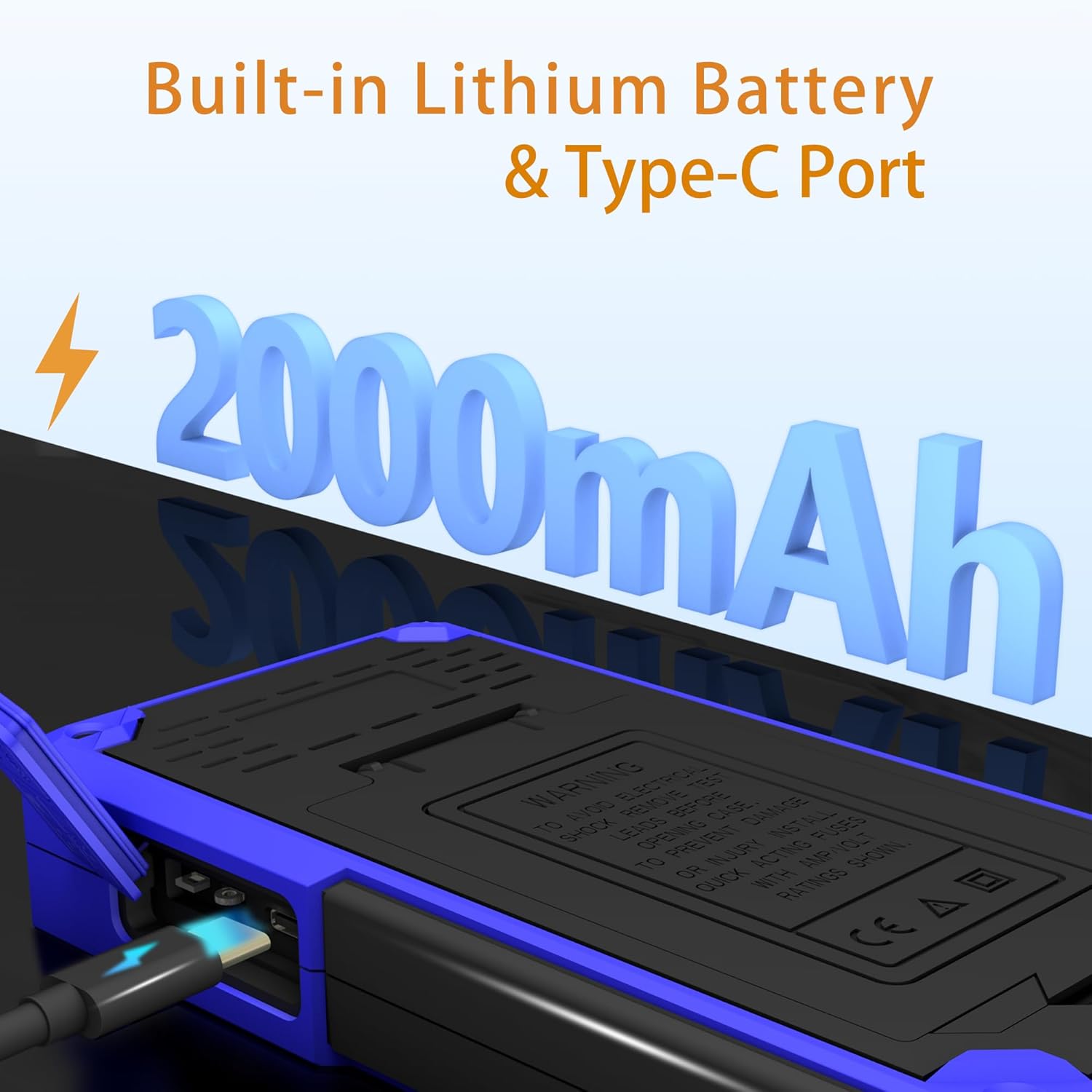

  • 2 in 1 functions with oscilloscope and multimeter, meet your demand; HDS2S oscilloscope is a multifunctional electronic testing device; Portable compact size and lightweight, and built-in rechargeable battery, easy to carry anytime and anywhere
  • Oscilloscope: Dual Channel; 25MHz Bandwidth; 250 MSa/s Real-time sampling rate; Waveform refresh rate up to 10,000 wfms/s; Cursor testing & 7 kinds of automatic measurements; Self-calibration function; SCPI supported, facilitate secondary development; Support PC software connection
  • Multimeter: 20,000 counts reading digital display, support basic measurement(Voltage, current, resistance, capacitance, on/off, diode), Max input voltage AC : 750V /DC : 1000V; Max input current AC : 10A /DC : 10A; Support Auto Range & True RMS
  • Save Function: Support oscilloscope settings, reference waveforms and files can be stored. Any setting can be saved inside the oscilloscope and restore settings can also be called. Connect with PC, can read and analyze stored data(CSV, Images) for ease of work

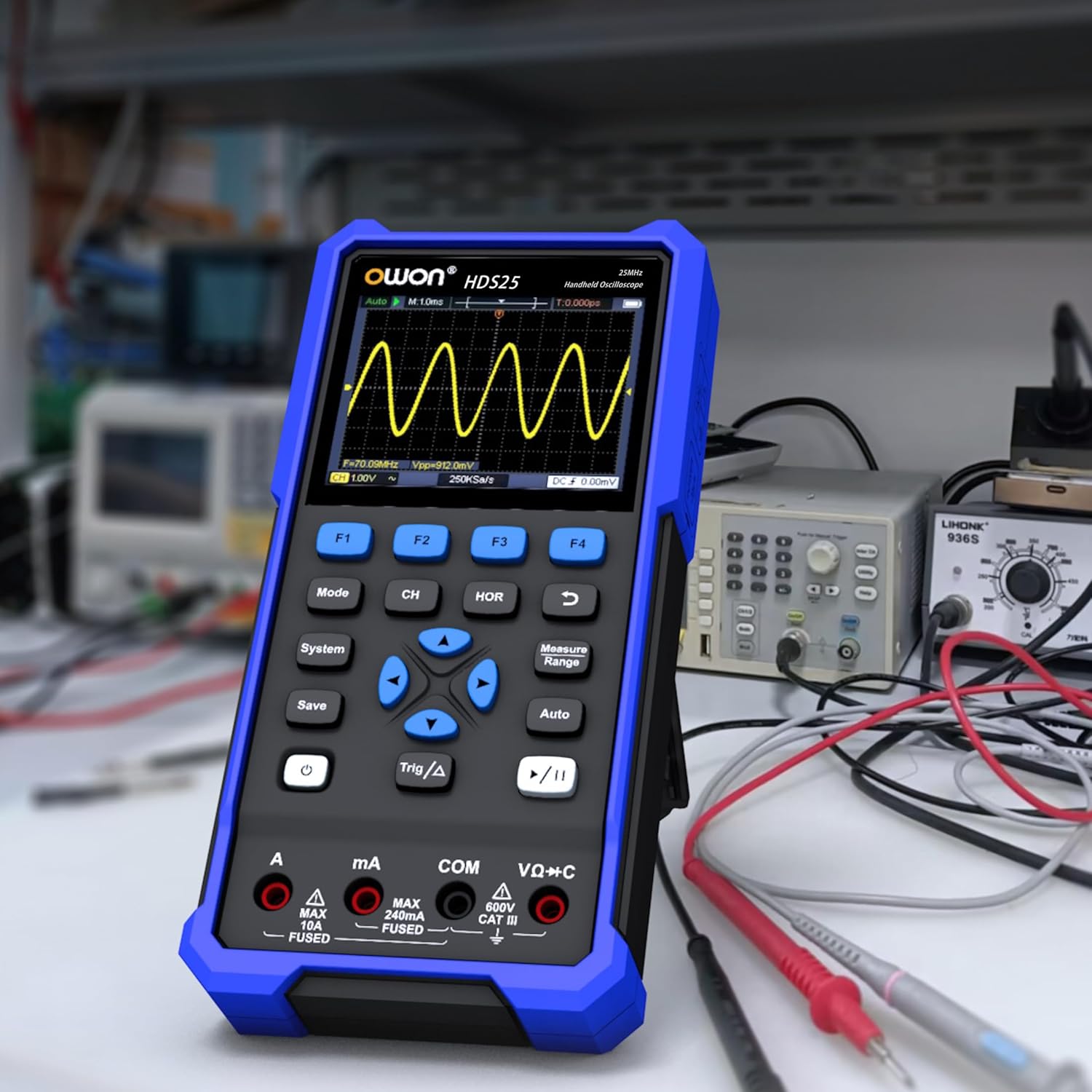

  • Application: Oscilloscopes are used to test and troubleshoot electronic circuits, Field Service And Repair, it can visualize the waveforms of signals passing through the circuit, which can help identify issues such as voltage spikes, or noise; Apply in Automotive Diagnostics, Signal Analysis, connected to sensors and components in a vehicle to identify potential issues
Download Operating Manual 詳細を表示する

  • オシロスコープ

    自動測定機能
    調整可能なキートーン
    バックライトの明るさと持続時間を調整可能
    調整可能なオートパワーオフ時間
    デジタル電圧計機能
    2 つの基準波形と 4 つのその他の波形の波形記録

  • マルチメーター

    DC/ACで利用可能
    電圧、電流、抵抗、ダイオード、静電容量、導通テストに利用できます。

    注意: 画面にはフィルムがあり、傷がある場合があります。剥がしてご使用ください。

  • 波形発生器

    4種類の波を発生させます。
    正弦波: 1Hz~25MHz
    方形波：1Hz～10MHz
    三角波：1Hz～1MHz
    台形：1Hz～5MHz
    周波数回転数: 1Hz
